Dams and spillways represent crucial engineering marvels designed to control the flow of water, prevent flooding, and manage water resources efficiently. These structures serve multifaceted purposes, including hydroelectric power generation, irrigation, flood control, and water supply. Understanding the intricacies and functionalities of dams and spillways is essential to grasp their profound impact on society, the environment, and water management.
The reservoir serves as the central component of a dam, storing vast amounts of water. This stored water is crucial for various purposes, including providing a stable water supply, irrigation for agricultural needs, and acting as a primary source for hydroelectric power generation.
Dams consist of various structural elements such as the embankment, spillway, and powerhouse. The embankment, typically made of concrete or earth materials, provides structural support and stability to the entire dam structure, ensuring its resilience against pressure and water load.
Spillways play a pivotal role in regulating water levels within the dam. They are engineered to release surplus water safely, preventing overflow and mitigating the risk of potential flooding downstream. The controlled release of water through spillways maintains optimal reservoir levels while averting potential disasters.
If rainfall and snowmelt were consistent year-round, designing dams would be far more straightforward. In reality, dams exist precisely because of hydrologic variability—storing water during wet periods and releasing it when conditions are dry. They not only secure water supplies but also protect communities from flooding by regulating unpredictable inflows.
However, these inflows are not always gradual or modest. In some watersheds, the majority of the annual water volume can arrive in a single storm event, rushing into reservoirs with little warning. This unpredictability makes it impossible for engineers to design a dam for one fixed discharge capacity. Seasonal changes, snowmelt, and sudden heavy rainfall add further uncertainty.
To handle such surges, most dams are equipped with spillways—safety structures that channel excess water away from the reservoir. When water levels rise too high, the spillway prevents overtopping by allowing controlled discharge downstream.
Spillways are typically built with a penstock and a large cross-sectional channel or tube that connects the upstream reservoir with the downstream riverbed. This design ensures water can bypass the dam structure safely and efficiently during flood events.
Gravity dams utilize their weight and gravity to resist the horizontal thrust of water. Constructed with concrete or masonry, these dams are ideal for sites with sturdy foundations, effectively holding back substantial volumes of water due to their inherent mass and stability.
Arch dams, characterized by their curved structure, efficiently transfer the water's load to the abutments on either side of the dam. Their design enables them to withstand immense pressure by directing forces into the rock foundation, making them suitable for narrow valleys or gorges.
Embankment dams, constructed using compacted earth or rock-fill materials, offer versatility in various terrains. Their adaptability makes them feasible for locations with moderate foundations, providing an effective solution for water storage and flood control.
Incorporating support structures (buttresses) on the downstream face, these dams utilize both the weight of the dam and the additional supports to withstand water pressure.
Different spillway designs cater to various dam types and water flow requirements:

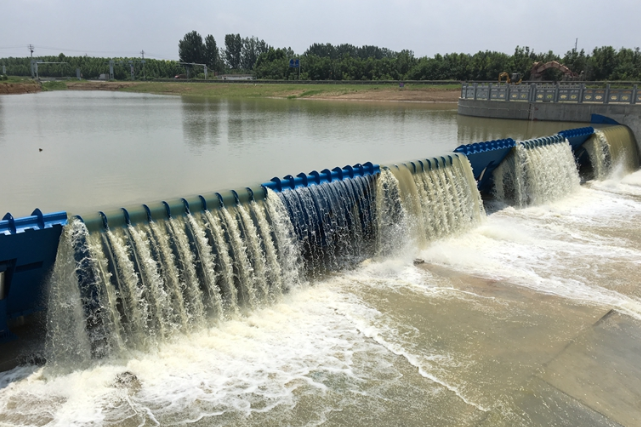

1. Overflow Spillways: These allow water to flow over the dam's crest, usually through a concrete-lined channel or gates. They are a common feature in many dam constructions.
2. Side Channel Spillways: Constructed adjacent to the dam, these spillways divert excess water away from the main structure, reducing pressure on the dam.
3. Siphon Spillways: Utilizing the siphon effect, these spillways draw water over the dam without the need for mechanical gates, often used in smaller dams and irrigation systems.
4. Tunnel Spillways: Designed as tunnels through or around the dam, these spillways redirect water downstream, minimizing erosion risks and preserving the dam's integrity.
Emergency spillways act as crucial safety valves, activated during extreme weather conditions or unforeseen circumstances that lead to excess water levels in the reservoir. These structures provide an additional outlet for water discharge, averting potential dam failures and catastrophic flooding.
Controlled spillways allow for the regulated release of water, ensuring the gradual and controlled flow downstream. By managing water discharge, controlled spillways maintain optimal reservoir levels, facilitate irrigation, and mitigate the risk of downstream flooding.
Dams and spillways have a profound impact on surrounding ecosystems. Careful planning and implementation are essential to minimize adverse effects on wildlife habitats, fish migration, and the overall biodiversity of the area. Sustainable practices, such as fish ladders and environmental impact assessments, are integral in mitigating environmental disruption.
One of the significant advantages of dams is their role in hydroelectric power generation. By harnessing the energy from flowing water, dams contribute to clean and renewable energy production, reducing reliance on fossil fuels and mitigating carbon emissions.
Dams and spillways stand as remarkable engineering achievements that serve vital roles in water resource management, energy production, and environmental sustainability. Understanding their functionalities, diverse types, and environmental impact underscores their critical importance in our modern world.
As explained, the main function of a spillway is to control the overflow of water stored upstream in a reservoir. It is designed simply to maintain the safe water level within the dam. When water rises above the spillway crest, it automatically flows over and discharges downstream through the outlet—without relying on moving parts or mechanical devices.
However, over time, spillways may require inspection and maintenance to ensure they can continue to handle large volumes of water safely and effectively.
Here at BIC, we provide professional dam construction and maintenance services. Our team is among the most knowledgeable and experienced in the United States, with years of proven expertise in solving the complex challenges involved in dam projects. From construction to long-term upkeep, BIC delivers reliable solutions that ensure the safety, performance, and longevity of dam structures.
