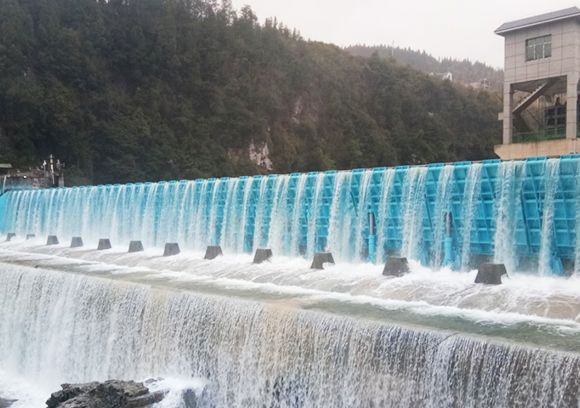

Overview of Hydraulic Weir
Hydraulic weir also known as spillway weir, can help prevent flooding and protect downstream areas. The hydraulic structure is also highly durable and reliable, with low maintenance requirements. Hydraulic dam can be designed to meet a wide range of project requirements, making them a versatile solution for water management applications.
Hydraulic cylinders support at the back of the panel to lift up the gate for blocking water or to drop down the gate in the case of flood discharging. Hydraulic structure is applicable to various hydrological and geological conditions; hydraulic barrages are widely used in river landscape, storage of irrigation water, expension of reservoir capacity and other water conservancy hydropower, water ecological civilization and urbanization construction projects. This technology has obtained series of patents issued by State Intellectual Property Office of P.R.C and has been listed in 2014 Catalogue of Key Promotion and Guiding for Advanced Water Conservancy Practical Technologies.
As a professional hydraulic dam construction company, spillway weirs include rubber weir and simplified elevated dam, custom design and service are provided by BIC, according to overseas and national water resources and hydropower environments.
Water Level Control and Flood Protection
Modern dams rely on hydraulic drive systems with cylinders to manage gate movement and positioning for both water level control and flood protection. Depending on the gate type—radial, rotary, slide, or flap—the hydraulic cylinders must be custom-engineered to suit the specific mechanical configuration. These designs can follow DIN, ASME, or regional standards, and can be adapted to meet unique customer requirements. Key functions such as load holding, synchronization, and safety are achieved through manifold blocks, which are typically directly flanged to the cylinders. By offering in-house engineering and production of both hydraulic manifolds and power units, we provide customers with fully integrated system solutions for civil engineering applications. A reference list showcasing our experience from over 300 projects is available upon request.
Hydraulic Dam Specifications
Gate material: RCC/Steel/Stainless steel
Gate type: Arc type/ plate type/shaped type(customized)
Gate height (H): 0.5m-6.0m
Width of single span:The standard width can be 6m, 7m or 8m; it also can be made to order.
Hoisting structures: Plunger type cylinder/double-acting cylinder multi-stage cylinder.
Control system: Manual control cabinet, PLC control cabinet, computer local cabinet, computer remote control.
Synchronous dam elevating and lowering, automatic alarm function and dam lowering in case of exceeding water level. Design superiority.
New Structure
1. Adapt Integrated triple hinge, variable-amplitude structure.
2. Panel supported by cylinder with small range. panel & cylinder working in same direction.
3. No ditching work needed, easy built.
Special Function
1. Follow increment of ice pressure, set panel dropping sequence.
2. Through reset of all panels through electrical & hydraulic systems to finish ice cleaning process.
3. Maximum ice breaking pressure is 51.2 T/M. breaking process done in front of dam.
Lift and Drop Fast
1. Integrate oil circuit and valve group, develop modular software to monitor hydraulic valve circuit and water level sensor.
Or integrated software of linkage Technology for manual measuring water level.
2. Fast Dam lifting. Dropping under High Water Level. Unpowered dam Locking.
3. Dam dropping in variable Speed & Unpowered under Multiple conditions, satisfies Emergency Flood discharge demand. Speed adjustable at range of 30s-30min.
Applications of hydraulic weirs
Hydraulic weirs are used in a variety of water management applications, including flood control, dam safety, hydroelectric power generation, and navigation. Radial spillway gates can be installed in a variety of hydraulic structures, including spillway weirs and spillway dams. Spillway tainter gates are often used in conjunction with other water management solutions, such as inflatable rubber dams and water diversion structures.
Widens Hydraulic Dam applicability to special conditions, such as mountain area, cities, rivers have floating matters, siltation and ice discharging.
Reliable & Intelligent

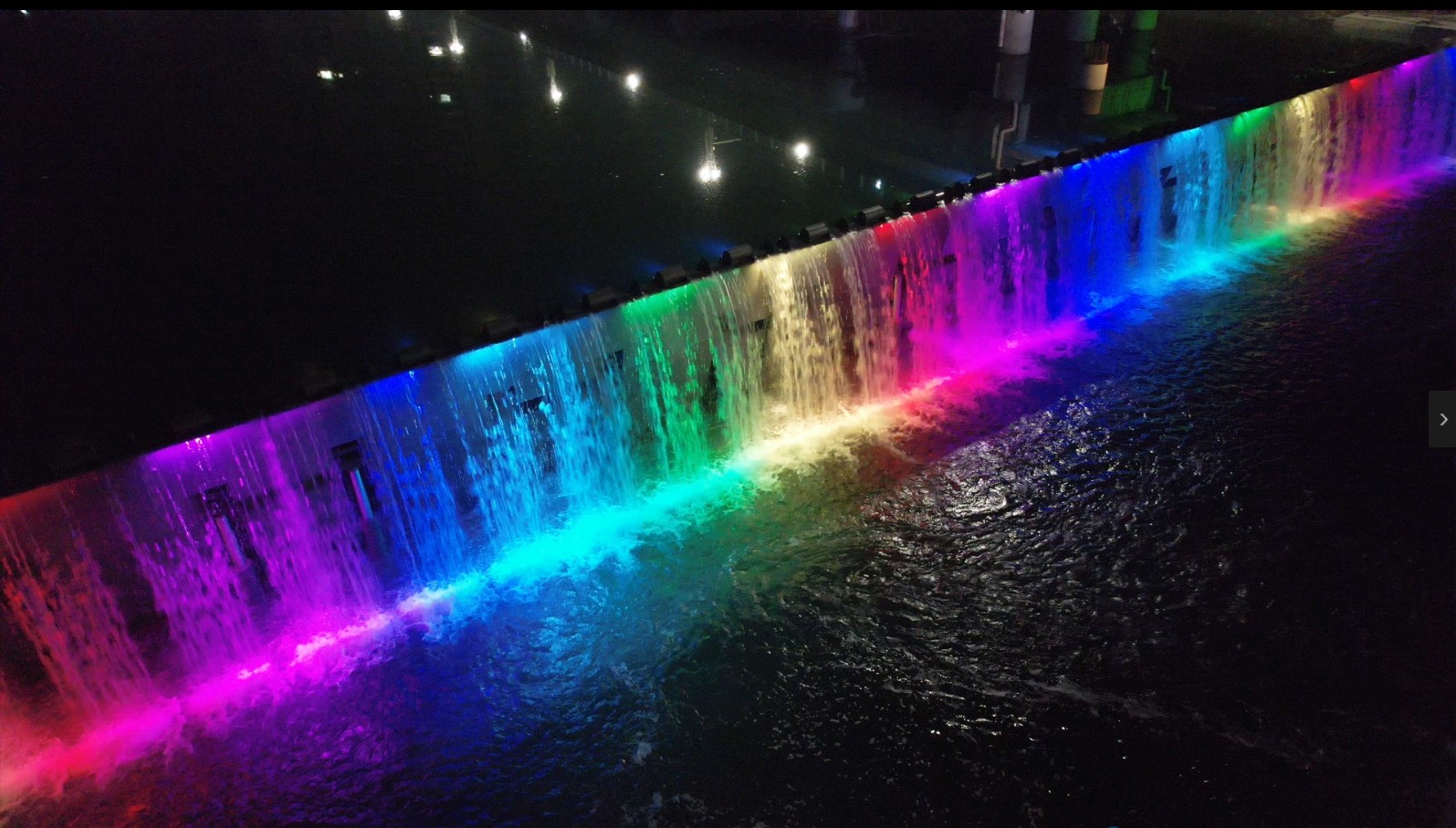

Remote on-line monitoring, mobile APP real-time monitoring, dynamic waterscape, compatible with cascade dispatching system, compatible with local water bureau flood control dispatching system etc, achieved intelligent management of hydraulic gate.
As a leading hydraulic structure design supplier, we provide a full range of services to our customers, from design and engineering to manufacturing, installation, and maintenance. Our experienced team of professionals can help our customers design and optimize their hydraulic structures for maximum efficiency and effectiveness. We also offer training and support to help our customers operate and maintain their spillway gates for optimal performance.
Durable Hydraulic Systems for Civil Infrastructure
BIC designs and manufactures each hydraulic cylinder, power unit, actuator, ship arrestor, and hoist to meet the exacting demands of civil engineering applications. Engineered for long-term reliability and performance, our systems are tailored to the unique conditions and functions of each project.
Typical Structures Served
Water control and hydroelectric dams
Navigational locks
Ship and ferry terminals
Movable bridges
Flood and hurricane barriers
Key Application Areas
Movable bridge hydraulic cylinders
Crest gate and tainter gate hydraulic cylinders
Trash rake and culvert valve hydraulic cylinders
Miter gate actuators and hydraulic cylinders
Sector gate actuators and cylinders
Intake and outlet gate hydraulic cylinders
Water control structure hoists
Ship arrestor systems
Vehicle ramp hydraulic cylinders
Radial gate wire rope hoists
Heavy movable structure hydraulic systems
Civil engineering-specific hydraulic solutions
