Seawater Desalination Plant

Seawater desalination technology has been used for a long time in the world within the scope of the shortage of fresh water resources area. In all of the seawater desalination technology, with a relatively low initial investment and running cost and ease of automation advantages, reverse osmosis method as the desalination process. Using reverse osmosis technology, we can isolate from the sea or the sea water municipal domestic water, industrial process water and agricultural irrigation water.

The Overall Design Scheme of RO Desalination Technology

With many years of practical experience BIC desalination engineers, not only in term of grasping desalination device system of reverse osmosis membrane, high-pressure pump, the performance of the core products such as energy recovery device, and accumulated rich experience in practical engineering, can according to the customer provide the raw water quality, water rate and water production of water quality requirements, such as electrical control requirements to provide customers with technical consulting, system design and maintenance and other after-sales service technical guidance, etc. As an unmatched seawater desalination plant supplier, we would like to provide the most excellent technical servicescontainerized water treatment plants and solutions to customers around the world.


Excellent research and development team

Relying on China Institute of Water Resources and Hydro-power Research (IWHR) strong technical force, research and development team, BIC consistent commitment to desalination and research of water supply process related to high as good as new technology, material, equipment and development.


Main business includes:

●system development, manufacturing and sales;

●project investment, construction, engineering general contracting, and desalination plant operations;

●related products, materials and technology import and export business, etc.


Seawater desalination process

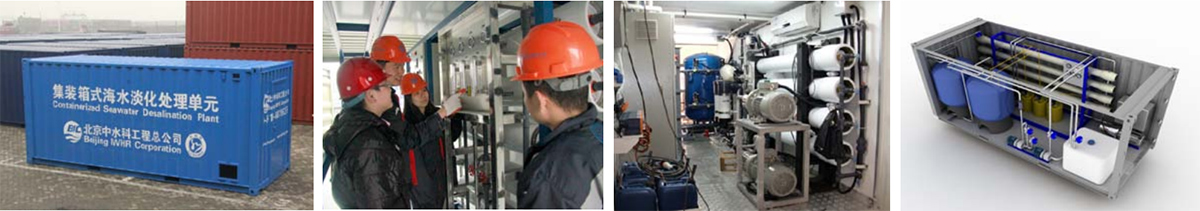

Containerized Seawater Desalination Plant

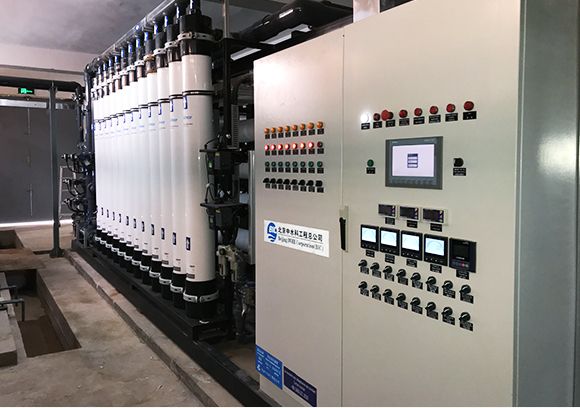

Seawater Desalination System Built in Plant

The facilities location of the complete set of seawater desalination system is in a built factory. The whole containerized desalination plant in strict accordance with international industry standard design, manufacture, installation and use the most advanced technology for energy recovery device and control. BIC company provides design, production installation and debugging of turnkey project.

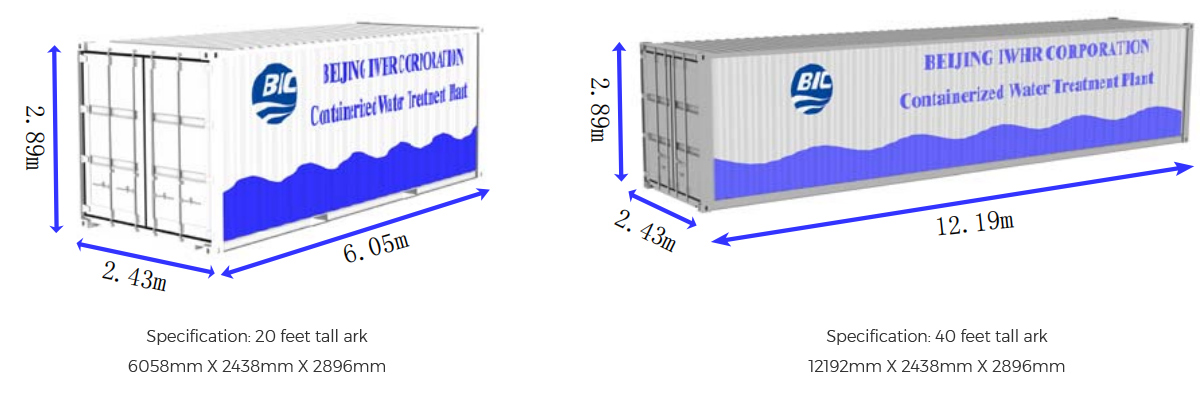

Containerized Seawater Desalination Plant


Containerized Seawater Desalination System

BIC condensed the desalination design concept in the container, international transportation, not only satisfy the full again enough customers for delivery and installation and debugging cycle shortening. The commercial desalination system can be operated in a short period of time to making qualified fresh water supply, especially suitable for the coastal water engineering, remote areas or island region. Mobile desalination plant is selective to be used as civilian or military, and equipment could be fixed installation or removable.


Containerized Seawater Desalination Plant


Product Specification of Containerized Desalination Plant

Containerized Seawater Desalination Plant


Product Model of Containerized Desalination Plant

Model

Parameter

SW-6S SW-12S SW-18S SW-24S SW-50C SW-70CSW- 120CSW- 160CSW- 220ECSW- 320ECSW- 500ECSW-640EC
Water quantity m3/d61218245070120160220320500640
Rated recovery%25/2830/3230/3230/324545454545454545
Energy recovery device////////iSave21iSave21iSave40iSave40
Overall dimensions(mm)length1100110013001500600060006000600012000120001200012000
wide60060060060024002400240024002400240024002400
height160016001800180028002800280028002800280028002800
Power consumption3KW6KW6.6KW8.5KW25KW28KW45KW60KW50KW68KW88KW120KW


Why Take BIC as The Preferred Choice?

Containerized Seawater Desalination Plant
