Simplified Elevated Dam

The Simplified Elevated Dam cancels the original power control part, and adopts manually operated and newly developed hand hydraulic pump or diesel engine integrated lift and drop device to drive the hydraulic cylinder, which makes the gate body around the bottom axis with a certain angle range. It can achieve the functions of raising the sluice to block water, lowering the sluice to release water, and automatically lowering the sluice without power in super high floods without electricity.

There are two types of Simplified Elevated Dam constructed by BIC, Integrated Simplified Elevated Dam and Movable Simplified Elevated Dam, their features and advantages are as below:

Type 1

Simplified Elevated Dam

Type 2

Simplified Elevated Dam

Specification of Simplified Elevated Dam

Retaining height: 1~4m

Width of channel: 3~50m

Panel material: Steel, Stainless steel

Foundation: Reinforced concrete foundation

Lift and Drop Time: 1~10min/span

Application of Simplified Elevated Dam

Spillway, irrigation channel, landscape

No electricity area

No power transformer, no power cables

Sea coast

Type 1: Integrated Simplified Elevated Dam(ISED)

Simplified Elevated Dam

Diesel Engine

Simplified Elevated Dam

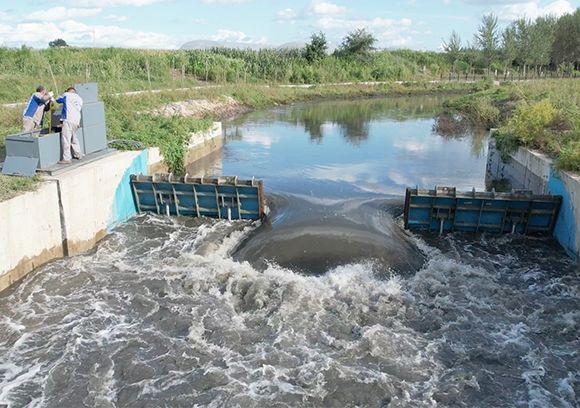

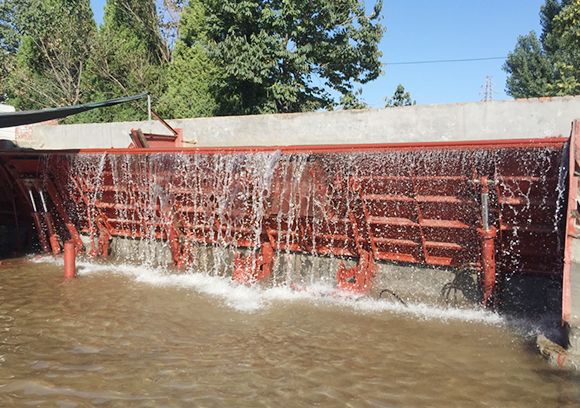

Dam Over flow

Simplified Elevated Dam

Manual Hydraulic Pump

Characteristics ofIntegrated Simplified Elevated Dam

Driven by manpower or diesel engine;

The back of each panel have 2 hydraulic cylinders;

Operating on side bank;

Especially used in freshwater and no electricity area.

Type 2: Movable Simplified Elevated Dam(MSED)

Simplified Elevated Dam

Movable Truck

Simplified Elevated Dam

Movable Truck

Characteristics of Movable Simplified Elevated Dam

Only requires 2 cylinders to lift or drop all panels by trolley;

Panels are supported by locking rod;

The truck operated on the concrete base floor;

Especially used in sea coast.

Advantages of Movable Simplified Elevated Dam

Simple structure

Easy and Fast Operation & installation

Short construction period

Highly integrated

Cost saving

As a professional simplified elevated dam manufacturer, custom design and technical support are provided by BIC, including site investigation, feasibility study, design, technical consulting and installation guidance etc. Other dam types include: Hydraulic Elevator Dam and Rubber Dam! Welcome to contact us for more information!
