Urban flooding is a growing challenge worldwide as cities densify, impervious surfaces expand, and extreme rainfall events become more frequent. Engineers and city planners increasingly rely on flexible, adaptive hydraulic structures — notably movable rubber dams (inflatable rubber dams) and sluice gates — as components of an integrated urban flood-control system. This article examines how each technology is applied in urban settings, compares strengths and limitations, and provides practical guidance for planners considering these solutions.
Permanent, rigid flood-control works (large concrete weirs, high fixed levees) can be effective but often conflict with urban needs for navigation, aesthetics, ecology, and multifunctional open space. Movable structures — rubber dams and sluice gates — offer operational flexibility: they can be adjusted to create temporary storage, pass floods quickly, protect low-lying areas, and restore natural flows when the hazard period ends. These adaptive capabilities make them attractive for urban rivers, lake outlets, stormwater regulators and multifunctional waterfront projects.

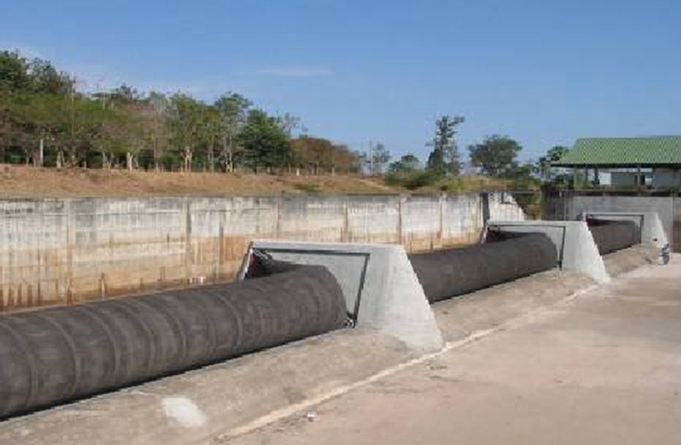

How they work (brief): Inflatable rubber dams are fabric-reinforced rubber membranes fixed to a concrete foundation across a channel. They are inflated (air or water) to raise upstream levels and deflated to remove the barrier and allow full flow. Because they lie flat when deflated, they present minimal obstruction to flood flows and navigation when not in use.
Rapid flood-pass capability: Quick deflation removes obstructions during extreme events, reducing structural loads and upstream overtopping. This capability is particularly valuable in urban channels where rapid conveyance of flood peaks can reduce inundation duration.
Sediment and debris management: Periodic deflation helps flush accumulated sediment and debris downstream, easing upstream siltation problems common in urban rivers.
Low visual and space footprint: When deflated they disappear into the bed, enabling riverside amenity use, recreation and fish passage during non-flood periods.
Faster deployment and lower civil cost: Compared with heavy gate structures, rubber dams can be quicker to install and often require less massive civil works for similar small-to-moderate head control.
Temporary retention to flatten peak hydrographs and reduce downstream flood risk.
Water level management for urban parks, waterfronts and recreational basins.
Diversion to off-river storage and recharge basins during storm events.
How they work (brief): Sluice gates are rigid metal gates installed in cutwater structures, outlet channels, or lake/drainage mouths. They can be operated manually, electrically, or hydraulically to control discharge and water level. Sluice gates are a core element of stormwater infrastructure in many cities.
Precise flow regulation: Sluice gates allow fine control of discharge, useful where controlled release is needed to protect downstream critical infrastructure or synchronize with flood storage facilities.
Integration with permanent works: Gates are suitable for lake outlets, stormwater pump stations and flood diversion canals where a permanent, durable control is required.
Robustness at higher heads: For higher head differences and navigational/industrial needs, metal gates are structurally superior.
Controlled drawdown of lakes/reservoirs during storms.
Emergency closure of outfalls to prevent tidal or storm surge intrusion.
Flow partitioning between conveyance channels, storage basins and treatment plants.
Many successful urban flood-control schemes combine rubber dams and sluice gates because they serve complementary functions:
Use rubber dams where reversible pool creation, fast removal during floods, recreational aesthetics, or sediment flushing are priorities.
Use sluice gates where precise flow control, integration with pumps and permanent outlets, or higher-head applications are required.
Hybrid schemes — e.g., rubber dam for seasonal pool management upstream of a permanent gated outfall — allow both flexibility and robust control.
Effective urban deployment requires modernization beyond the physical structure:
Sensors and SCADA: Automated water-level sensors, remote gate control and SCADA integration allow rapid actuation (inflate/deflate or open/close) based on thresholds. This reduces reaction time in flash-flood scenarios and avoids human-delay risk.
Maintenance planning: Rubber dams need periodic inspection of membranes, anchor seals and inflation systems; sluice gates require corrosion protection, seal integrity checks and actuator maintenance. Budgeting lifecycle O&M is as important as initial capital cost.
Before selecting a movable rubber dam, sluice gate, or combination, assess:
Design flood (return period) and expected peak discharge.
Required head control (how many meters of pool raising) and tolerance for temporary head.
Channel sediment and debris load — is regular flushing possible?
Navigation and ecological requirements — fish passage, boating, etc.
Integration with pumps, storage basins and emergency plans.
Local O&M capacity and access for inspections and repairs.
Municipal lake regulation: Several cities have installed sluice gates at lake outlets to manage drawdown during monsoon seasons to reduce downstream flooding.
Rubber dam seasonal control: Inflatable dams have been used in urban rivers to create temporary waterfront pools for recreation that can be removed rapidly during heavy rainfall — enabling dual-use urban space without permanent obstruction.
For flashy urban streams with limited head and an interest in reversible, low visual-impact solutions, prioritize rubber dams.
For permanent outlets, pump-station interfaces, tidal protection, or high-head needs, use sluice gates.
Wherever possible, automate monitoring and actuation, tie controls into emergency flood-response procedures, and plan O&M funding for at least the first 20 years of operation.
Movable rubber dams and sluice gates are not competitors but tools in a city engineer’s toolbox. Careful siting, hydraulic analysis, and a clear operational strategy (including automation and maintenance plans) will let urban planners exploit the strengths of each — using rubber dams for reversible, low-impact pool management and sluice gates where permanent, precise control is essential. When combined within integrated urban flood-control systems, these movable structures help cities reduce flood risk while preserving urban function, ecology and amenity.
