Choosing between an inflatable rubber dam and a conventional steel gate (sluice/spillway) is a common dilemma for water managers, engineers, and communities. Each technology has clear strengths and trade-offs — the right choice depends on river hydraulics, sediment load, flood risk, ecology, navigation and local budget/maintenance capacity. Below I’ll walk you through the practical differences, real-world use cases, and a simple decision checklist to help you pick the best option for your river.

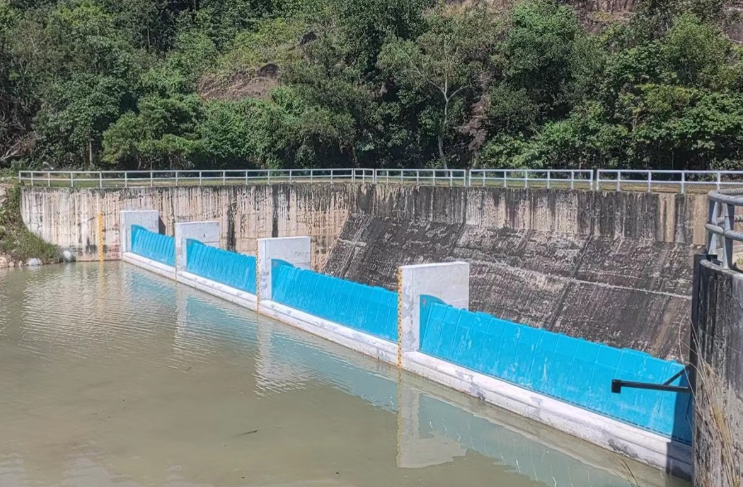

A long, flexible membrane (fabric-reinforced rubber) anchored to a concrete foundation and inflated with air / water to form a temporary weir. When deflated it lies flat on the bed and allows full flow; when inflated it raises upstream water level for storage, diversion, or recreation. Common for irrigation, small hydropower, seasonal water supply and temporary flood control.
A rigid metal gate set into a concrete structure or frame that is mechanically raised or lowered to control discharge, upstream head and navigation. Designed for high structural loads and long service life in higher-head, navigable or industrial settings.
| Factor | Inflatable Rubber Dam | Steel Gate (Sluice / Spillway Gate) |
|---|---|---|
| Typical use | Low-to-moderate head control, irrigation, seasonal pool creation, ecological restoration | Higher head control, navigation locks, permanent spillways, industrial outlets |
| Construction speed & cost | Shorter construction, lower initial capital for comparable pondage (membrane prefabricated). Good for fast deployment. | Usually heavier civil works and mechanical systems — higher up-front civil/mechanical cost but robust structural solution. |
| Operation | Rapid: inflate/deflate allows flexible response to floods and seasonal needs. Easier remote/automated control. | Slower, mechanical operation; designed for frequent but controlled movements. Requires power and mechanical maintenance. |
| Maintenance | Lower routine mechanical maintenance (no painting/greasing), but membrane inspections and periodic replacement required. | Requires anti-corrosion treatment, painting, hydraulic/oil system upkeep and hinge/gland maintenance. Historically more maintenance-intensive. |
| Flood resilience | Can be deflated quickly to pass flood flows — reduces overtopping risk and downstream structural damage in extreme floods. | Designed to pass floods via spillway or gate opening but if mechanical failure occurs, consequences can be high; maintenance and redundancy are critical. |
| Sediment & debris | Deflation helps flush sediment and debris downstream, reducing reservoir siltation. | Sediment tends to accumulate upstream of fixed gates/weirs; requires dredging or special sediment-management works. |
| Environmental / aesthetics | Lower visual footprint when deflated; good for temporary ecological works and fish passage design if combined with appropriate structures. | More permanent look; can be designed with fish passages but needs careful planning. |
| Typical lifetime | Membrane life depends on materials & abrasion—well-maintained systems often serve many years; membranes are replaceable. | Very long structural life (decades) if maintained — steel/mechanical parts can be refurbished. |
| Best where | Seasonal rivers, irrigation canals, urban rivers with flood/landscape needs, projects needing fast installation or reversible control. | Large rivers, navigation locks, high-head hydro, heavy duty industrial applications. |
Rubber dams’ cost-effectiveness and rapid deployment make them ideal for many irrigation and urban projects.
Inflatable designs manage flood risk by deflating quickly during high flows, allowing safe passage of floodwater and reducing structural loading compared to a fixed weir.
Steel gates, while mechanically and structurally robust, require more routine upkeep (painting, lubrication, hydraulic service).
Comparative studies and project experience show rubber-dam solutions can have lower total lifecycle maintenance cost for low-to-medium-head applications because of simpler operation and fewer mechanical elements (local conditions and design matter greatly).
Rubber dams are widely adopted worldwide — many Asian and North American projects use inflatable weirs as a flexible alternative.
Choose rubber if most of the following are true:
You need seasonal or adjustable pool levels (e.g., irrigation, aquifer recharge, urban waterfronts).
Fast deployment and short construction schedule are priorities.
Floods are episodic and you want a structure that can be quickly deflated to pass extreme flows.
You have moderate head requirements and significant sediment transport (deflation helps flushing).
Visual/landscape impact and temporary/reversible operation matter.
Pick steel gates if:
You need higher permanent head, navigation control, or integration with locks and large spillways.
The site needs a rigid structural solution for industrial or municipal waterworks.
You can budget for more extensive civil works and ongoing mechanical maintenance.
What is the design head (m) and maximum flood magnitude?
What is the sediment / debris load and how easily can you dredge?
Are navigation or heavy industrial discharges required?
What is the available O&M budget / local technical capacity for mechanical upkeep?
Are environmental or seasonal reversal requirements (deflation to restore flow) important?
For many irrigation and urban river projects, inflatable rubber dams have been installed because they reduce construction time and allow rapid seasonal operation.
For permanent river regulation with navigation or large spillway capacity, steel gates are still the go-to option, provided the owner commits to regular mechanical maintenance and corrosion protection.
There’s no one-size-fits-all. If your priority is flexibility, faster delivery and a lower up-front footprint — rubber dams are an excellent, often more economical choice for low-to-medium heads and flood-adaptive schemes. If you need high structural capacity, navigation capability or a permanent high-head control — steel gates are typically the better long-term option (but plan for O&M). Use the checklist above to rate your site and I can convert that into a clear recommendation and a short spec draft (materials, typical foundation, and O&M notes).
