Inflatable dams — flexible, tube- or bladder-shaped structures made from high-strength synthetic fabrics and rubberized coatings — are quietly reshaping how governments and agencies manage water across continents. Lightweight, cost-effective, and quick to deploy compared with traditional concrete structures, these engineered membranes are being used for flood control, irrigation, temporary water storage, and even small hydropower schemes. In this spotlight, we look at how inflatable dams are being put to work across Asia, Africa, and South America, the benefits they bring, the challenges projects face, and what the future might hold for this nimble water-management technology.

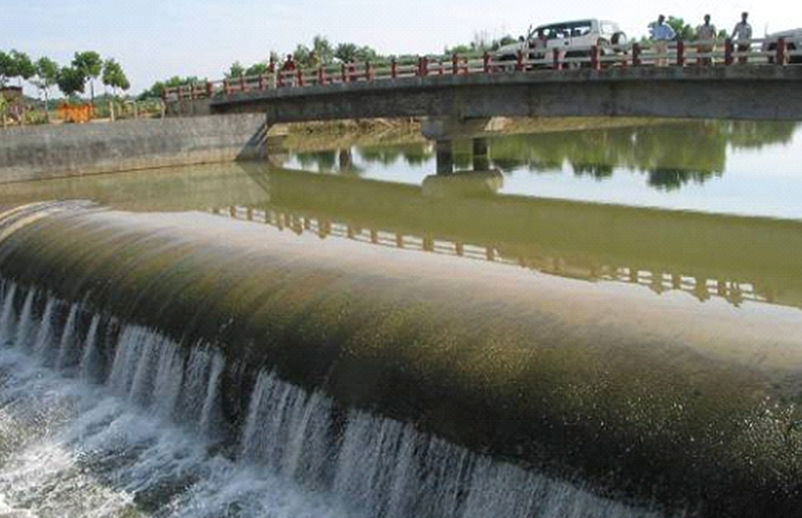

An inflatable dam is essentially a sealed flexible tube or series of tubes anchored to a channel bed. By pumping air or water into the tube, the device rises and blocks flow; by deflating it, normal flow resumes. This simple operating principle gives several practical advantages:
Rapid deployment and removal. Inflatable dams can be installed far faster than building a concrete weir or gated structure, making them ideal for temporary needs or phased projects.
Lower upfront cost. Material and installation costs are generally much lower than permanent civil works, especially in remote or resource-constrained locations.
Adjustability. Operators can fine-tune head and storage levels by changing inflation pressure, offering operational flexibility for irrigation, flood control, or environmental flows.
Reduced civil footprint. Because they don’t require large volumes of concrete, inflatable dams can be less disruptive to riverbeds and easier to remove or replace.
Safety and resilience. In flood events, inflatable dams can be deliberately deflated to allow debris to pass, reducing the risk of catastrophic failure from impact loads.
These features explain why inflatable dams are attractive to planners looking for flexible, cost-conscious solutions — particularly in developing regions and river systems with high seasonal variability.
Asia’s diverse climates and densely populated river basins make adaptive water infrastructure especially valuable. Inflatable dams have found applications from temperate East Asian rivers to monsoon-fed systems in South and Southeast Asia. Typical uses include:
Flood mitigation in urban and peri-urban rivers, where quick-acting barriers help protect low-lying neighborhoods during seasonal surges.
Irrigation and water-lifting for agriculture, allowing farmers to raise water levels temporarily to divert flow into canals during the growing season.
Hydraulic head creation for small hydropower and water supply intakes, where a modest, adjustable head is all that’s required.
Projects in the region often favor modular inflatable systems that can be staged along a river to manage flow locally while minimizing impact. In densely developed watersheds, the ability to deflate a structure quickly during extreme events or maintenance is highly valued.
Many parts of Africa experience extreme variability in river flows: intense wet seasons followed by long dry spells. Inflatable dams serve as pragmatic tools for:
Seasonal water storage for irrigation, helping communities smooth water availability through dry months without expensive permanent reservoirs.
Rural water supply and livestock watering, where modest storage and controlled diversion make community water systems feasible.
Emergency flood response, where temporary barriers can protect settlements while more permanent solutions are planned.
Because installation can require less heavy equipment and civil works than traditional dams, inflatable systems are attractive where access, finance, and local construction capacity are constrained. However, projects must carefully address material durability (UV exposure, abrasion, vandalism) and ensure capacity-building so local teams can operate and maintain the installations.
South America’s large river systems and steep Andean tributaries pose both opportunity and complexity. Inflatable dams are used for:
Regulating flows for irrigation networks in arid coastal zones, where controlled diversion supports high-value agriculture.
Low-impact intervention in ecologically sensitive rivers, where temporary structures reduce the permanent footprint on wildlife corridors and fish migration routes.
Support for small hydropower and off-grid generation, especially in remote communities that need modest, reliable heads to drive turbines.
Given the continent’s rich biodiversity, designers often pair inflatable solutions with fish-friendly diversion channels and adaptive operation plans that protect seasonal migration and spawning.
While inflatable dams offer many benefits, successful projects must manage several practical challenges:
Durability and damage risks. Fabric and seams can be vulnerable to abrasion, vandalism, or puncture by debris. Mitigation includes protective rock aprons, sacrificial layers, and routine inspection regimes.
Sediment management. Sediment deposition can alter bed profiles and affect sealing; periodic dredging or engineered bed treatments are often needed.
Operation and local capacity. The low-tech appearance can mislead stakeholders about required operational discipline; training and clear maintenance contracts are essential.
Environmental and social assessment. Even temporary structures change flow regimes. Proper environmental impact assessment and stakeholder engagement ensure measures like fish passages and water-sharing rules are in place.
Supply chain and parts. Sourcing replacement membranes, pumps, and instrumentation locally (or at least regionally) reduces downtime and lifecycle costs.
Successful projects tend to combine good technical design with local stakeholder participation and realistic lifecycle budgeting.
Inflatable dam technology is evolving. Newer materials extend service life and resistance to UV and abrasion; integrated monitoring (water level sensors, remote telemetry) supports smarter operation; and hybrid arrangements (inflatable membranes combined with modest concrete footings) deliver durability without full permanent construction. Climate variability and the need for flexible, reversible infrastructure mean inflatable dams will likely continue to find niches — particularly for adaptation projects, rural water schemes, and temporary flood defenses.
For planners, the message is clear: inflatable dams are not a one-size-fits-all replacement for permanent infrastructure, but they are a powerful tool in the water-management toolbox. When matched to the right hydraulic conditions, backed by operation plans and community buy-in, they can deliver rapid, cost-effective benefits across Asia, Africa, and South America.
