How Do Different Spillway Gates Work?

Jun. 26, 2023

Spillway gates are crucial components of dam and reservoir systems used to regulate water flow and prevent the overflow of water during periods of excessive rainfall or flood events. They are designed to release excess water from the reservoir, maintaining the desired water level and preventing potential damage to the dam structure. There are several types of spillway gates, each functioning in a unique way to control water flow. Let's explore some of the commonly used spillway gate designs and how they work.


1. Radial (Tainter) Gates:

Radial gates, also known as Tainter gates, are one of the most common types of spillway gates. They consist of a curved radial arm hinged at the top of the gate structure. The gate can rotate about its hinge point to control the flow of water. When the gate is in the closed position, the curved surface of the gate forms a seal against the surrounding structure, preventing water from passing through.


To release water, the radial gate is rotated outwards, allowing water to flow over and beneath it. The gate can be positioned at different angles to regulate the discharge rate and maintain the desired water level. Radial gates are efficient in controlling high flow rates and can handle large volumes of water.


2. Roller Gates:

Roller gates are another type of spillway gate commonly used in dam and reservoir systems. They consist of cylindrical or semi-cylindrical gates that roll up and down to control water flow. The gates are suspended from an overhead structure and operate on a system of pulleys and counterweights.


When water needs to be released, the roller gates are lowered, allowing water to pass over and beneath them. The gates can be adjusted to different positions to control the discharge rate. Roller gates are known for their reliability, ease of operation, and ability to handle high-velocity flow.

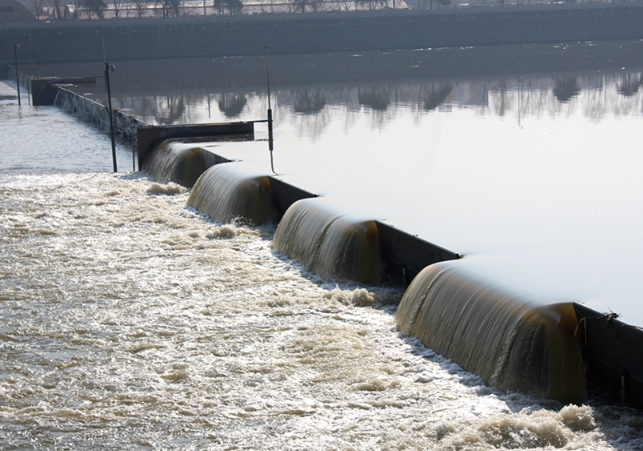

spillway gate

3. Slide Gates:

Slide gates, also known as sluice gates, are vertically moving gates that slide up and down to control water flow. They consist of a rectangular gate panel that moves in guides or grooves on either side of the gate opening. The gate panel can be raised or lowered to regulate water discharge.


Slide gates are commonly operated by hydraulic or mechanical systems. Hydraulic slide gates use hydraulic cylinders to lift or lower the gate panel, while mechanical slide gates use a system of gears, chains, or ropes. Slide gates are suitable for low to moderate flow rates and are often used in smaller dams and channels.


4. Flap Gates:

Flap gates, also called hinged crest gates or flip buckets, are designed to passively control water flow without the need for external power sources. They consist of a hinged panel attached to the crest of a spillway or dam structure. The gate is inclined so that water flow pushes it open.


As water levels rise, the force of the water opens the flap gate, allowing water to pass through. When water levels drop, the gate closes due to gravity. Flap gates are simple in design, self-operating, and are commonly used in low-flow situations or as auxiliary spillway gates.


5. Needle Gates:

Needle gates, also known as jet flow gates or jet needle gates, are specialized spillway gates used for precise control of water flow. They consist of a series of slender, cylindrical needles that can be raised or lowered individually to control the discharge rate. The needles are typically housed in guide slots or tubes.


To release water, the needles are raised to allow water to flow through the gaps between them. By adjusting the position of the needles, the flow rate can be precisely controlled. Needle gates are often used in situations where fine control and high accuracy of water flow are required, such as in irrigation canals or hydroelectric power plants.


6. Fuse Gates:

Fuse gates, also called fuse plugs, are emergency spillway gates designed to be sacrificial in nature. They are used when the primary spillway capacity is exceeded, and the reservoir is at risk of overtopping the dam. Fuse gates consist of blocks or panels made of materials that can be easily eroded or removed.


When water levels rise above the predetermined threshold, the fuse gates start to erode or disintegrate, creating an opening for water to pass through. This controlled erosion prevents uncontrolled or catastrophic overtopping of the dam and provides a controlled path for water release. Fuse gates are designed to be replaced or repaired after activation.


These are just a few examples of the various spillway gate designs used in dam and reservoir systems. Each type of gate offers different features and capabilities to control water flow and prevent the overflow of reservoirs. The selection of the appropriate spillway gate design depends on factors such as the expected flow rates, available space, cost considerations, and specific requirements of the dam or reservoir system.
