Different Between Dams, Weirs, and Barrages: Understanding Hydraulic Structures

Nov. 11, 2023

Hydraulic structures play a crucial role in managing water resources, controlling river flow, and facilitating various water-related activities. Among these structures, dams, weirs, and barrages are distinct types, each serving specific purposes based on their design and functionality. Here, we delve into the key differences between dams, weirs, and barrages.


1. Dams:


Dams are large structures built across rivers or watercourses to impound water, creating reservoirs. They are primarily designed to store water for irrigation, municipal water supply, flood control, and hydropower generation. Dams come in various types, including gravity dams, arch dams, and embankment dams, each with unique construction methods and characteristics.


 Types of Dams:

     Gravity Dams: These dams rely on their weight and the force of gravity to resist the pressure exerted by water. They are often made of concrete and are suitable for large-scale projects.

     Arch Dams: Shaped like a curved arch, these dams transfer the force of the water to the abutments, making them suitable for narrow canyons.

     Embankment Dams: Constructed with compacted earth or rock fill, these dams are versatile and can be built in a variety of environments.



     Water Storage: Dams store water for various purposes, including irrigation, drinking water supply, and industrial use.

     Flood Control: Dams help regulate river flow, reducing the risk of downstream flooding during heavy rainfall or snowmelt.

     Hydropower Generation: Many dams incorporate turbines to harness the energy of flowing water for electricity production.

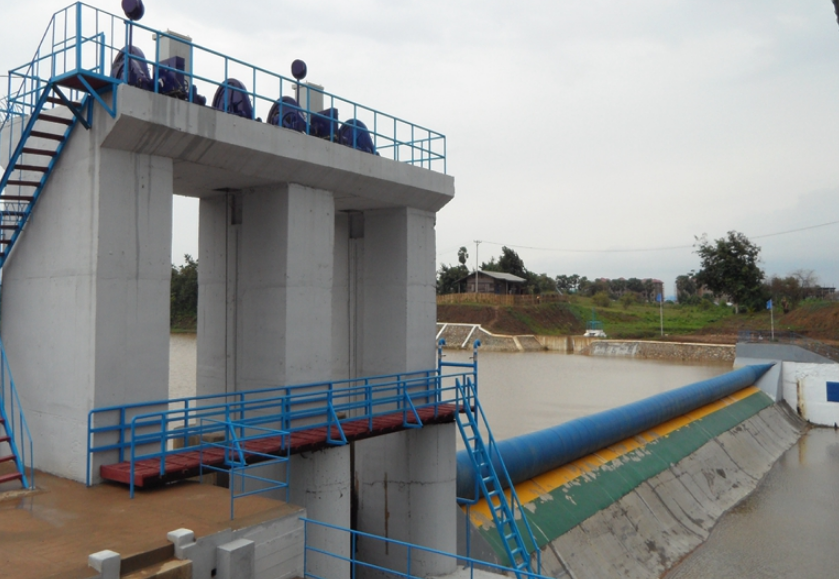

Hydraulic Elevator Dam

2. Weirs:


Weirs are structures built across rivers or streams to alter the flow of water. They are typically lower in height than dams and may span the entire width of a river or only a portion. Weirs are designed to control water levels, facilitate irrigation, prevent saltwater intrusion in estuaries, and measure discharge.


 Types of Weirs:

     Sharp-Crested Weirs: These have a sharp, thin crest that allows for accurate measurement of water flow.

     Broad-Crested Weirs: Featuring a wider crest, these weirs are effective in controlling water levels and reducing flow velocity.



     Flow Measurement: Weirs are often used to gauge the rate of water flow in rivers or channels.

     Water Level Control: By adjusting the height and design of the weir, water levels can be regulated for irrigation or navigation.

     Sediment Control: Weirs can help trap sediments, preventing them from moving downstream and affecting water quality.


3. Barrages:


Barrages are structures built across rivers to divert water for irrigation, navigation, or flood control. Unlike dams, barrages do not create large reservoirs. They are often accompanied by gates or sluice gates that can be opened or closed to control the flow of water.



     Diversion of Water: Barrages redirect water to channels or canals for agricultural irrigation or other purposes.

     Navigation: In some cases, barrages are constructed to aid navigation by maintaining a consistent water level in rivers.

     Flood Control: Similar to dams, barrages can help regulate river flow and mitigate the impact of floods.


 Types of Barrages:

     Navigation Barrages: Built to maintain water levels for navigational purposes.

     Diversion Barrages: Constructed to divert water for irrigation or other uses.

 Inundation Barrages: Designed to create temporary flooding in specific areas for agriculture or ecological purposes.

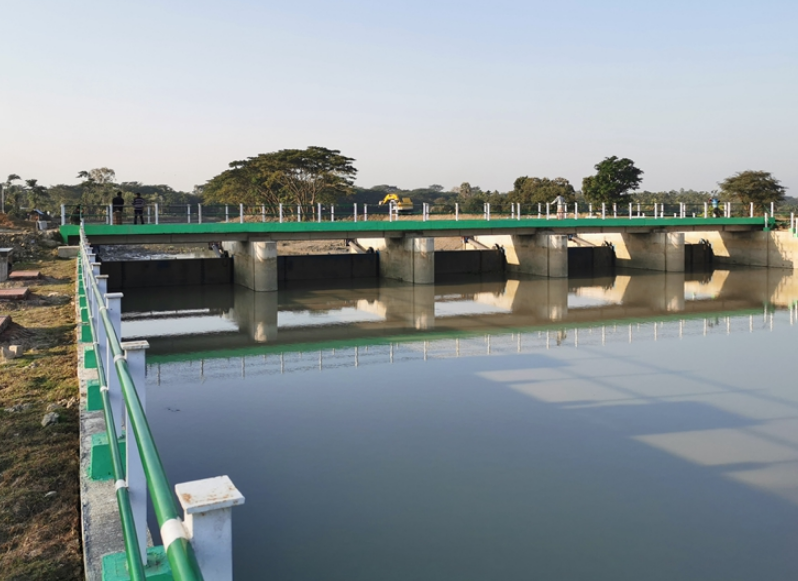

Hydraulic Elevator Dam

Key Differences:




Dams primarily create reservoirs for various purposes, including water supply, power generation, and flood control.

Weirs control water flow for irrigation, water supply, and measurement purposes.

Barrages regulate river flow for navigation, irrigation, and flood control without creating large reservoirs.


Size and Complexity:


Dams are large, complex structures designed to withstand high water pressures and create substantial reservoirs.

Weirs are simpler structures used for flow control and measurement, with various designs based on specific needs.

Barrages are larger than weirs and are designed for specific purposes like navigation, irrigation, or flood control.


Reservoir Creation:


Dams create reservoirs by impounding water behind the structure.

Weirs and barrages do not typically create large reservoirs; they control water flow without significant storage.


Construction Materials:


Dams are constructed using materials such as concrete, masonry, or compacted earth, depending on the type.

Weirs can be made of concrete, wood, or other materials, depending on their design and purpose.

Barrages may use a variety of materials, including concrete and steel, to withstand the forces of flowing water.


Flow Regulation:


Dams control flow by adjusting the release of water from the reservoir.

Weirs regulate flow by raising the water level upstream and diverting water.

Barrages help regulate flow for navigation, irrigation, or flood control without creating a reservoir.



In summary, while dams, weirs, and barrages all play roles in managing water resources, their differences lie in their primary purposes, size, complexity, and the way they control water flow. Dams are major structures that create reservoirs, weirs are simpler flow control structures, and barrages are larger structures designed for specific purposes without significant water storage. Each serves a unique function in water resource management and contributes to the sustainable use of water for various human needs.
