What Is a Spillway in a Dam?

Feb. 27, 2024

A spillway part of a dam that is designed to allow water to flow freely over the dam during floods. Spillways may be used on dams with floodgates as an additional means to control release of water during flooding. A spillway may also be used as the main area of water release from a dam, allowing water to flow through the spillway only when the reservoir is full.


What Is a Spillway?


A spillway is a carefully engineered structure intended to manage the controlled release of surplus water from a reservoir, dam, or similar water-holding installations. It serves as a critical element in many large-scale dams and reservoirs, averting potential disastrous outcomes by preventing water from breaching the dam's crest.


During periods of intense precipitation, snowmelt, or other contributing factors, a dam's reservoir can quickly fill to capacity, causing the water level to rise. Should the water level surpass the reservoir's limits, there's a risk of compromising the dam's structural integrity. To mitigate this threat, spillways are meticulously designed to divert excess water safely away from the dam and downstream, thus minimizing the likelihood of overtopping.

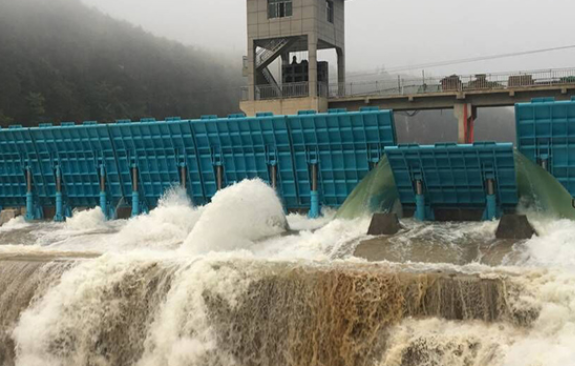

Spillway dam

Types of Spillways


Various spillway designs serve specific purposes in managing water flow. Here are some common types:


Ogee Spillway: Characterized by its smoothly curved structure resembling an arch, the ogee spillway is frequently employed in concrete dams for precise control over water discharge.


Chute Spillway: Utilized in earth or rock-filled dams, chute spillways feature steep, often unlined, channels that swiftly channel water downstream, efficiently handling large volumes of water.


Labyrinth Spillway: Comprising a series of walls and piers, labyrinth spillways create a winding path for water flow. This intricate design dissipates energy and minimizes erosion downstream.


Side Channel Spillway: Positioned adjacent to the dam, the side channel spillway redirects excess water during high levels, ensuring the safety of the main dam structure.


Morning Glory Spillway: Also known as bell-mouth spillways, these circular openings resembling funnels are commonly integrated into arch dams, capable of efficiently managing high flow rates.


Advantages and Disadvantages of Spillway


Advantages of Spillways:


1. Flood Control: Spillways play a vital role in averting reservoir and dam overtopping during intense rainfall, snowmelt, or influxes. Through controlled discharge of surplus water, they effectively manage water levels, mitigating the potential for downstream flooding.


2. Dam Safety: Spillways play a vital role in ensuring the safety and integrity of dams. By preventing overtopping and potential dam failures, they protect surrounding communities and infrastructure from catastrophic flooding.


3. Erosion Control: Properly designed spillways help dissipate the energy of flowing water, reducing the erosive forces downstream. This prevents excessive erosion of riverbanks and riverbeds, preserving natural habitats and structures.


4. Hydropower Generation: Spillways are incorporated into hydropower dams to release water during periods of low energy demand. This adaptable feature enhances energy resource management and ensures grid stability.


Disadvantages of Spillways:


1. Environmental Impact: Spillways have the potential to disrupt natural river flow and alter downstream ecosystems. The rapid discharge of water can cause fluctuations in water temperature, sediment transport, and changes in aquatic habitats, impacting fish and other aquatic organisms.


2. Sediment Accumulation: High-speed water flow through spillways can result in sediment buildup downstream. Over time, this accumulation may reduce the capacity of water channels and reservoirs, necessitating regular maintenance and dredging efforts.


3. Infrastructure Cost: The construction and upkeep of spillways can incur significant expenses, particularly for large dams or complex structures. Proper budgeting and consideration of ongoing maintenance costs are essential during the planning stages of dam projects.


4. Risk of Failure: Like any infrastructure, spillways are susceptible to wear and tear, as well as potential failures. Inadequate maintenance or unexpected events such as severe weather conditions can lead to malfunction or damage, posing risks to downstream communities and infrastructure.

Spillway dam
