A hydraulic steel dam is a modern type of dam that utilizes hydraulic mechanisms to manage and control water flow. Unlike traditional dams constructed from concrete or earth, hydraulic steel dams are built with movable steel components that can be raised or lowered to adjust water levels and flow as needed. This design offers greater flexibility, efficiency, and responsiveness, making hydraulic steel dams a valuable solution in today’s water management infrastructure. In this article, we’ll take a closer look at how these dams operate, their key components, and their wide range of applications.
A hydraulic steel dam is composed of several integrated components that function together to control and regulate water flow effectively:
The foundation of the dam is a robust steel structure, engineered for strength and long-term durability. It is designed to withstand intense water pressure and support the dynamic load of hydraulic equipment. Modular construction is often used, allowing for easier maintenance, upgrades, or section replacements.
At the heart of the system are hydraulic components—cylinders, pumps, and valves—that enable precise movement of the dam's gates. These mechanisms are powered by water or electric pumps, which generate the necessary hydraulic pressure to raise or lower the gates in response to varying water conditions.
Constructed from steel, the gates are designed to move either vertically or horizontally, depending on the dam's configuration. These movable elements are the primary means of controlling water flow and reservoir levels. Their position is adjusted by the hydraulic system in real time to respond to environmental or operational demands.
Advanced control systems, including sensors, pressure gauges, and automated valves, continuously monitor the dam’s performance. These systems ensure safe and efficient operation and can be managed either manually on-site or remotely, depending on the infrastructure setup.
Hydraulic steel dams regulate water flow by utilizing hydraulic pressure to operate steel gates. The system functions as follows:
Hydraulic Pressure Activation: The dam's hydraulic system is powered by water pressure or an external pump, which drives hydraulic cylinders connected to the steel gates. As pressure increases, the gates can be raised to release water or lowered to retain it, depending on operational needs.
Gate Movement for Flow Control: When water levels rise above a predetermined threshold, the system raises the gates to discharge excess water downstream. In periods of low water levels, the gates are lowered to conserve water and maintain consistent flow rates.
Precise Flow Regulation: Hydraulic steel dams offer precise control over water discharge, essential for flood management, irrigation systems, and hydropower generation. By adjusting the gate height, operators can regulate the volume of water passing through the dam to suit varying conditions.
Automated Monitoring and Adjustment: Many modern systems incorporate automation, enabling real-time monitoring of water levels, weather, and environmental factors. These systems can automatically adjust gate positions, enhancing response time, reducing manual labor, and improving overall efficiency.
Hydraulic steel dams come in various designs, each tailored to specific operational needs. The main types include:
Fixed-Height Hydraulic Steel Dams: These dams feature gates set at a predetermined height, providing consistent flow control. They are ideal for applications such as irrigation and water storage, where flow conditions remain relatively stable.
Variable-Height Hydraulic Steel Dams: Equipped with adjustable gates, these dams offer greater flexibility by allowing operators to raise or lower the gate height as needed. They are commonly used in flood control and environments with fluctuating water levels.
Radial Gate Dams: These dams utilize curved, rotating gates that pivot to regulate water flow. Their robust design makes them suitable for high-capacity applications like hydroelectric power stations and river flow regulation.

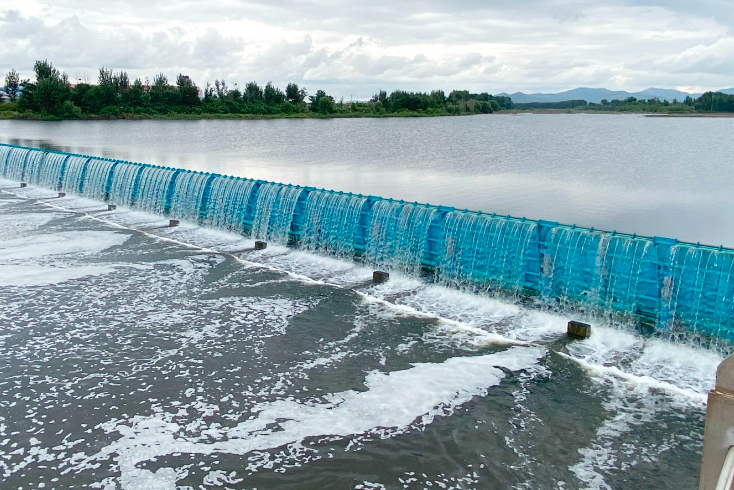

Rubber-Integrated Hydraulic Dams: Some systems combine steel structures with inflatable rubber components that adjust using air pressure. This hybrid approach enhances adaptability and is particularly useful in confined spaces or temporary installations.
Thanks to their adaptability and precise control capabilities, hydraulic steel dams serve a wide range of critical water management functions. Key applications include:
Flood Control: These dams are highly effective in mitigating flood risks. By rapidly adjusting gate positions in response to heavy rainfall or snowmelt, they help manage surges in water volume and reduce downstream flooding.
Irrigation Management: In agricultural areas, hydraulic steel dams regulate water flow into irrigation networks. This ensures crops receive adequate water during dry spells while minimizing waste and promoting efficient resource use.
Hydropower Generation: Hydraulic steel dams enable precise flow regulation to hydropower turbines, optimizing electricity production while maintaining environmental balance. Their flexibility allows operators to respond dynamically to energy demands and water availability.
Water Storage: These dams maintain ideal water levels in reservoirs used for municipal supply, industrial processes, or recreational purposes. Adjustable gates ensure consistent storage capacity across varying seasonal conditions.
Navigation Support: In navigable waterways, hydraulic steel dams help maintain sufficient water depth for vessel passage. By stabilizing water levels, they ensure safe and reliable transit for commercial and recreational boats.
Hydraulic steel dams offer several key benefits over traditional dam systems, making them a smart choice for modern water management:
Flexibility: Adjustable gate heights allow for precise, real-time control of water flow, enabling the system to respond effectively to fluctuating water levels and diverse operational needs.
Operational Efficiency: Automated controls and sensor-based systems reduce the need for manual oversight, enhancing responsiveness and improving overall system performance.
Reduced Environmental Impact: Compared to large-scale concrete or earthen dams, hydraulic steel dams typically require less invasive construction, resulting in lower disruption to natural landscapes and ecosystems.
Cost-Effectiveness: These dams are often more economical to install and maintain due to their modular design and reduced material requirements, offering long-term savings for infrastructure projects.
High Durability: Constructed from high-strength steel, these dams are engineered to withstand extreme pressures and harsh environmental conditions, ensuring long-term reliability.
Hydraulic steel dams represent a modern, efficient, and adaptable solution for water flow regulation across a wide range of applications—from flood control and irrigation to hydropower and navigation. With their combination of precision control, cost savings, and low environmental impact, they are increasingly favored in sustainable water infrastructure planning.
